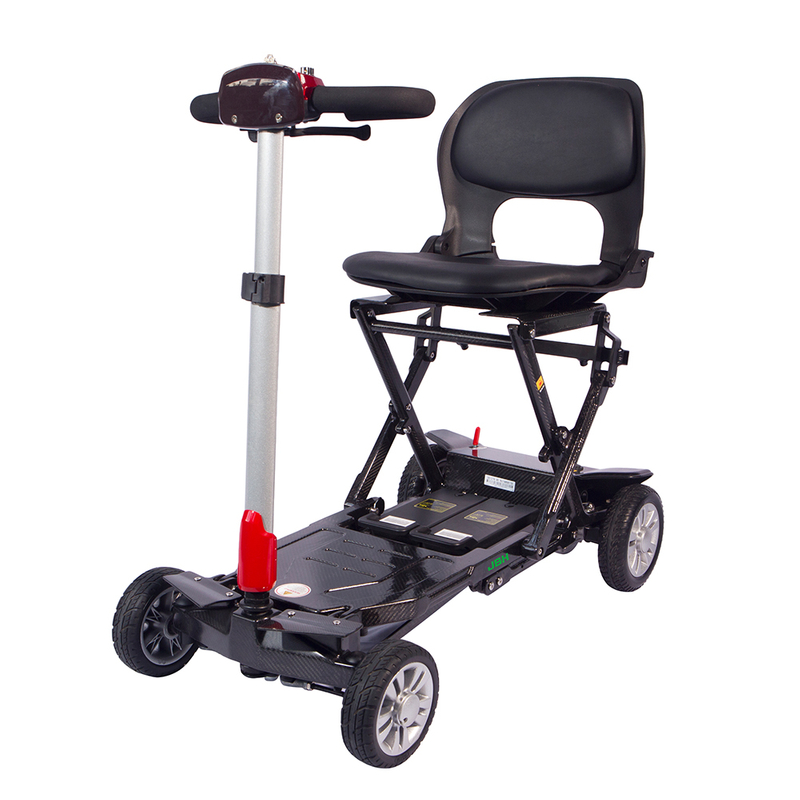

JBH Red Carbon Fiber Foldable Mobility Scooter FBC01

Unfolded Size 890*480*880mm

Folded Size   400*480*680mm

Driving Speed 0~6 km/h

Max drive distance 20 km

Max Capacity 140 kgs

Weight 19kgs (Without Battery)

Safe Gradient 0~8°

Motor   24V 180W

Lithium Battery 24V 6AH

Brake System Electromagnetic Brak
Availability:
linkedin sharing button
facebook sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
  • FBC01

  • JBH

FBC01 Mobility Scooter

Description:

   JBH FBC01 is a carbon fiber mobility scooter, the frame is much durable than others. It can be folded automatically, and put into the trunk easily.



Features:

    1. Carbon fiber frame. This is a material which can improve the performance of the mobility scooter and reduce it's weight at the same time.

   2. Ultra-light. The weight of FBC01 is only 19kgs (without battery), really portable for elderly people.

   3. Fast folding & small size. The FBC01 can be folded easily. And you can easily put it into the trunk.

   4. Airline approved battery. You can bring the mobility scooter to airplane.

   5. Detachable dot touch lithium battery, you can charging everywhere.

   6.  Manual and electric mode switching , match different people’s operating habits.

FBC01 Mobility Scooter


FBC01 Mobility Scooter


FBC01 parameters

Folding Steps:

   1. Push down the frame locking lever on low middle of frame. The frame will be unlocked.

   2. Push down from back of seat with one hand, the other hand hold the middle of steering post pushing toward the center at the same time for manual closing the scooter.

   3. The scooter will be fully folded once hearing a click sound.

 FBC01 mobility scooter



Unfolding Steps:

   1. Push down the frame locking lever on low middle of frame, it would be on top at folding position.. The frame will be unlocked.

   2. Push up from back of seat with one hand, the other hand hold the middle of steering post pushing outward the center at the same time for manual opening the scooter.

   3. The scooter will be fully unfolded. Make sure the scooter is fully extended to open condition by checking the lever if it locks.

FBC01 mobility scooter


Our Advantage:

   1. Have independent designer and factory. JBH Medical is a professional supplier of wheelchair and has our own factory and designer.

   2. High Quality Product. All our products have got the certifications and can meet different countries's requirements.

   3. Customization Service. Except the default colors, our products can be customized to any other colors according to your requirements.

   4. Perfect After-sales Service. We have agents in different countries, and provide technology support.

D26详情页-3_06

Fold Size
400*480*680mm
Unfold Size
890*480*880mm
Material
Carbon Fiber
Max Weight Capacity
140kgs
Speed
0-6km/h
Operating Range
20km
Turning Radius
1200mm
Motor
24V180W
Batteries
24V6AH
Ternary lithium Battery
Front Wheel Size
6.5"
Rear Wheel Size
7.5"
Default Color
Red
Black
Seat Width
450mm
Safe Gradient
Available Color
Glossy Black
Matte Black
