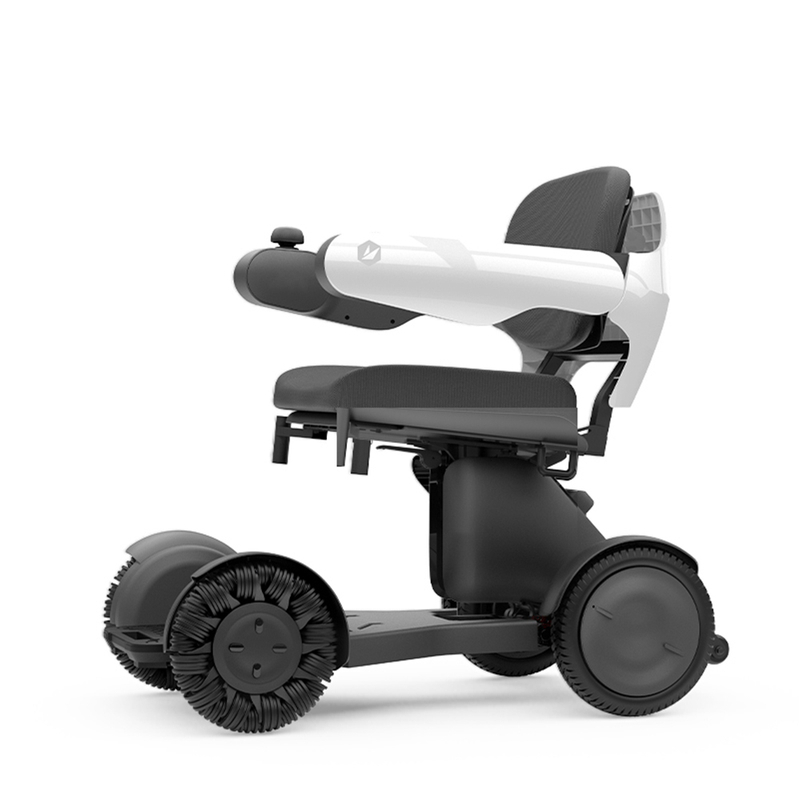

Who would say “NO” to a cute modern motorized wheelchair? As the new generation electric wheelchair, the JBH D30 has a much more attractive appearance. The wheelchair can be controlled through wireless device. Very convenient for people who can’t walk independently.
Specifications:
Stylish Design
Minimalist styling, with a round and gentle design, creates a sense of future and high-end.
Easy to Operate
No driving experience required even the elderly can handle it in a minute.
Automotive Technology
Designed and manufactured according to automotive standards. With 42 independently developed patents. The whole vehicle is composed of 207 components.Making it several times better than traditional wheelchairs.
Detachable
15-second quick detach design. Portable and easy to store.
Outstanding performance
Powerful performance,easily coping with common road conditions. Satisfying daily travel and tourism needs.
Free connection
Unrestricted access to subways buses,high-speed trains.and planes.
OUR FACTORY
Who would say “NO” to a cute modern motorized wheelchair? As the new generation electric wheelchair, the JBH D30 has a much more attractive appearance. The wheelchair can be controlled through wireless device. Very convenient for people who can’t walk independently.
Specifications:
Stylish Design
Minimalist styling, with a round and gentle design, creates a sense of future and high-end.
Easy to Operate
No driving experience required even the elderly can handle it in a minute.
Automotive Technology
Designed and manufactured according to automotive standards. With 42 independently developed patents. The whole vehicle is composed of 207 components.Making it several times better than traditional wheelchairs.
Detachable
15-second quick detach design. Portable and easy to store.
Outstanding performance
Powerful performance,easily coping with common road conditions. Satisfying daily travel and tourism needs.
Free connection
Unrestricted access to subways buses,high-speed trains.and planes.
OUR FACTORY
Unfold Size
970 × 580 × 880 mm (38.2"×22.8"×34.6")
Driving Speed
6 km/h (3.7mph)
Driving Range
≥20 km（12.4 miles）
Loading Capacity
100 kgs (220.5 lb)
Net Weight
52 kgs (114.6 lb)
Armrest Spacing
450 mm (17.7"）
Seat Height
530~610 mm (20.9"~24")
Seat Depth
400 mm (15.7"）
Motor
250W × 2 pcs brushless motor
Battery
24V 10AH × 1 pc polymer lithium battery
Braking System
Electromagnetic Brake
Front Wheel
254×60 mm (10"×2.4") universal wheels
Rear Wheel
265×55 mm (10.4"×2.2") PU solid wheels
Safe Gradient
Max 10°
Turning Radius
760 mm (29.9")
Charging Time
2.5 hours
Drive Model
Rear Drive
Default Color
Red
White
Grey
{"json":"[{\"index\":\"0\",\"tran_value\":[\"970 × 580 × 880 mm (38.2\\\"×22.8\\\"×34.6\\\")\"],\"tran_label\":\"Unfold Size\"},{\"index\":\"1\",\"tran_label\":\"Driving Speed \",\"tran_value\":[\"6 km/h (3.7mph)\"]},{\"index\":\"2\",\"tran_label\":\"Driving Range\",\"tran_value\":[\"≥20 km（12.4 miles）\"]},{\"index\":\"3\",\"tran_label\":\"Loading Capacity\",\"tran_value\":[\"100 kgs (220.5 lb)\"]},{\"index\":\"4\",\"tran_label\":\"Net Weight \",\"tran_value\":[\"52 kgs (114.6 lb)\"]},{\"index\":\"5\",\"tran_label\":\"Armrest Spacing \",\"tran_value\":[\"450 mm (17.7\\\"）\"]},{\"index\":\"6\",\"tran_label\":\"Seat Height\",\"tran_value\":[\"530~610 mm (20.9\\\"~24\\\")\"]},{\"index\":\"7\",\"tran_label\":\"Seat Depth\",\"tran_value\":[\"400 mm (15.7\\\"）\"]},{\"index\":\"8\",\"tran_label\":\"Motor \",\"tran_value\":[\"250W × 2 pcs brushless motor\"]},{\"index\":\"9\",\"tran_label\":\"Battery\",\"tran_value\":[\"24V 10AH × 1 pc polymer lithium battery\"]},{\"index\":\"10\",\"tran_label\":\"Braking System\",\"tran_value\":[\"Electromagnetic Brake\"]},{\"index\":\"11\",\"tran_label\":\"Front Wheel\",\"tran_value\":[\"254×60 mm (10\\\"×2.4\\\") universal wheels\"]},{\"index\":\"12\",\"tran_value\":[\"265×55 mm (10.4\\\"×2.2\\\") PU solid wheels\"],\"tran_label\":\"Rear Wheel\"},{\"index\":\"13\",\"tran_label\":\"Safe Gradient \",\"tran_value\":[\"Max 10°\"]},{\"index\":\"14\",\"tran_label\":\"Turning Radius\",\"tran_value\":[\"760 mm (29.9\\\")\"]},{\"index\":\"15\",\"tran_label\":\"Charging Time\",\"tran_value\":[\"2.5 hours\"]},{\"index\":\"16\",\"tran_label\":\"Drive Model\",\"tran_value\":[\"Rear Drive\"]},{\"index\":\"17\",\"tran_label\":\"Default Color\",\"tran_value\":[\"Red\",\"White\",\"Grey\"]}]","type":"2"}
The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes:
※ Chair frame: 3 years
※ Motors: 1 year
※ Controller and CPU system: 1 year
※ Battery: 6 months
※ Wear parts: 3 months
Includes tires, seat and backrest, armrests, and support straps.
This warranty is valid from the date of ex-factory and valid for the replacement of dysfunctional parts only. Any parts under warranty will be replaced and shipped to your door.
