Product Description

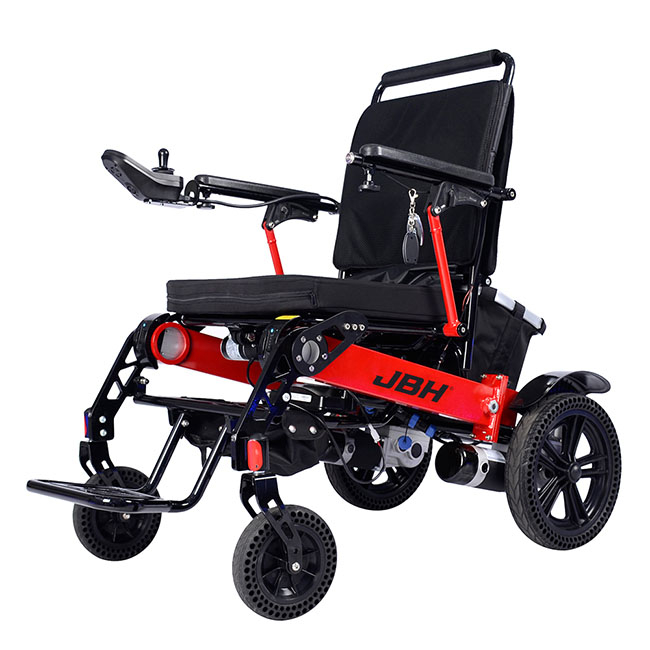

· D19 Portable Folding Electric Wheelchair The D19 is the Detachable rear frame set design for easy to carry,larger wheelchair for better stability ,Equipment with motion motors and dynamic controller for smooth and stable driving. It consists of the following series of products: D19A
Product Characteristics
1.1-second folding or unfolding,can be manual or remote controlled.
2. The wheelchair body can be detached.
3. Small volume after folding, can be put into car trunk.
4. It is supported by IATA,can be taken on airplane.
5. Electromagnetic brake: once your hands remove off the wheelchair,it will stop automatically,very safe.
6.Batteries can be taken out for charging,convenient and also avoid theft.
7. 12.5 inch big rear wheels,very stable and strong.
Product series
D19:Have a quick release
D19A:There is no quick release
Product Description
· D19 Portable Folding Electric Wheelchair The D19 is the Detachable rear frame set design for easy to carry,larger wheelchair for better stability ,Equipment with motion motors and dynamic controller for smooth and stable driving. It consists of the following series of products: D19A
Product Characteristics
1.1-second folding or unfolding,can be manual or remote controlled.
2. The wheelchair body can be detached.
3. Small volume after folding, can be put into car trunk.
4. It is supported by IATA,can be taken on airplane.
5. Electromagnetic brake: once your hands remove off the wheelchair,it will stop automatically,very safe.
6.Batteries can be taken out for charging,convenient and also avoid theft.
7. 12.5 inch big rear wheels,very stable and strong.
Product series
D19:Have a quick release
D19A:There is no quick release
Data Sheet
Fold Size | 650*400*950 mm |
Overall Size | 1230*650*1010 mm |
Material | Aluminum Alloy |
Max. Weight Capacity | 150 kg |
Speed | 0-6 km/h |
Operating Renge | 15-20 km |
Max. Inclination | 8° |
Turning Radius | 90 cm |
Motor | 24V 200W brush |
Batteries | 24V 6AH *2 |
Ternary lithium Battery | |
Battery Charger | 24V 2A |
Wheel Material | PU |
Front Wheel Size | 8” |
Rear Wheel Size | 12.5” |
Accessories
1. Head cushion
2. Cargiver control intallation kits
3. Cell phone holder
4. Storage bag
5. Leg brace
6. Atachable rear seat
7. Travel bag
8. Flashlight
9. Cup holder
Data Sheet
Fold Size | 650*400*950 mm |
Overall Size | 1230*650*1010 mm |
Material | Aluminum Alloy |
Max. Weight Capacity | 150 kg |
Speed | 0-6 km/h |
Operating Renge | 15-20 km |
Max. Inclination | 8° |
Turning Radius | 90 cm |
Motor | 24V 200W brush |
Batteries | 24V 6AH *2 |
Ternary lithium Battery | |
Battery Charger | 24V 2A |
Wheel Material | PU |
Front Wheel Size | 8” |
Rear Wheel Size | 12.5” |
Accessories
1. Head cushion
2. Cargiver control intallation kits
3. Cell phone holder
4. Storage bag
5. Leg brace
6. Atachable rear seat
7. Travel bag
8. Flashlight
9. Cup holder
